SGS BTR Between-The-Rails Unit Cooler

Product Details:

 Availability: North America | Tonnage range: 1.6 – 15.2 tons (5.6kW to 53.5kW)

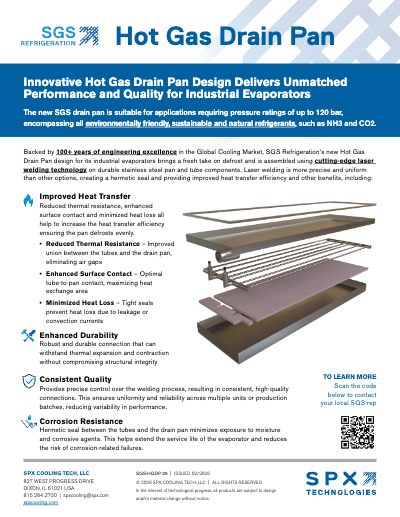

NEW: Tube style hot gas drain pan configuration with improved heat transfer efficiency.

Application: Small to medium capacity unit for use in freezers, coolers, and process rooms.

Coil: Optimized geometry with 5/8” & ¾” tube OD’s with integrated Turbo Spacer fin design achieving nominal 4 fins per inch.

Coil Material: Choose from Stainless Steel, Aluminum, or Copper to perfectly match any application.

Fans: Polymer blades configured to discharge air radially ensuring even and consistent air distribution.

Motors: Standard 0.167 to 0.5hp 1100 rpm options individually wired to a single terminal block.
